Original: $1,965.22
-65%$1,965.22
$687.83The Story
Terra is a Master Clock Generator designed for High-End Audio applications. Our design goal was to push the limits of what audio equipment can be.
The quality of the CLOCK is one of the profound elements and foundation of superior sonic performance. The lower the jitter, phase noise, as well as stability of the clock, often, improves the sound quality of the digital audio equipment.
HIGH PRECISION OCXO

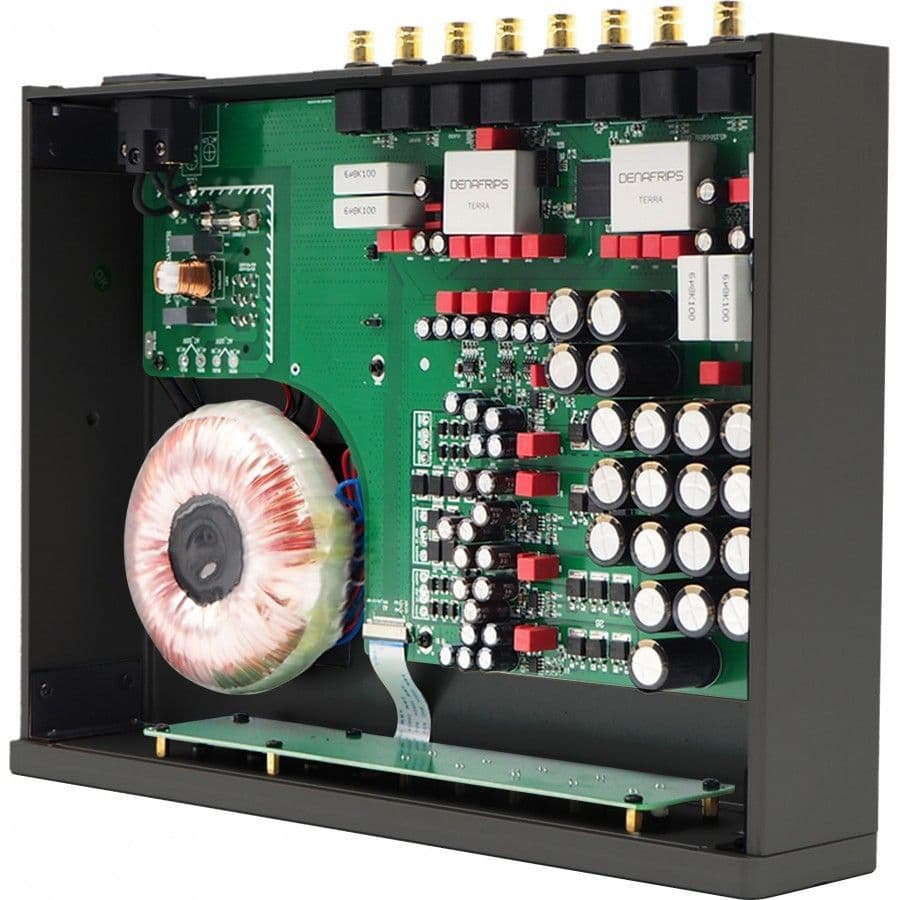

Terra is equipped with high precision Oven Controlled Crystal Oscillators (45.1548MHz, 49.152Mhz), powered up by high current multi-stages Linear Power Supply with oversized O-Core Transformer.
Lots of attentions were put in to increase the performance factors of the power supply - low noise, high slew rate and high current. These provide the OCXO adequate DC supply, hence, results in great thermal stability and low level crosstalk.
DESIGNED FOR HIGH END AUDIO
The MCLK1/2/3/4 CLOCK-OUT frequencies are configurable manually by the intuitive front panel to suit various application.
CLOCK OUT (Fixed)
- 45.1584MHz, 49.152MHz
CLOCK OUT (Adj)
- 44.1kHz, 48kHz
- 11.2896MHz, 12.288MHz
- 22.5792MHz, 24.576MHz
Specifications
| Product type | Audio clock |
| Fixed outputs | 2x 45.1548MHz 2x 49.152MHz |
| Adjustable outputs | 44.1kHz, 48kHz 11.2896MHz, 12.288MHz 22.5792MHz, 24.576MHz |
| Output connectors | BNC 75Ω |
| Oscillators | OCXO |
| GENERAL | |
|---|---|
| Supply voltage | 100-240VAC, 50/60Hz (manual selection) |
| Consumption | ≤ 20W |
| Dimensions | 340 x 260 x 66mm |
| Weight | 6kg |
| Package | 1x Denafrips Terra 1x Power cord |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Terra is a Master Clock Generator designed for High-End Audio applications. Our design goal was to push the limits of what audio equipment can be.
The quality of the CLOCK is one of the profound elements and foundation of superior sonic performance. The lower the jitter, phase noise, as well as stability of the clock, often, improves the sound quality of the digital audio equipment.
HIGH PRECISION OCXO
Terra is equipped with high precision Oven Controlled Crystal Oscillators (45.1548MHz, 49.152Mhz), powered up by high current multi-stages Linear Power Supply with oversized O-Core Transformer.
Lots of attentions were put in to increase the performance factors of the power supply - low noise, high slew rate and high current. These provide the OCXO adequate DC supply, hence, results in great thermal stability and low level crosstalk.
DESIGNED FOR HIGH END AUDIO
The MCLK1/2/3/4 CLOCK-OUT frequencies are configurable manually by the intuitive front panel to suit various application.
CLOCK OUT (Fixed)
- 45.1584MHz, 49.152MHz
CLOCK OUT (Adj)
- 44.1kHz, 48kHz
- 11.2896MHz, 12.288MHz
- 22.5792MHz, 24.576MHz
Specifications
| Product type | Audio clock |
| Fixed outputs | 2x 45.1548MHz 2x 49.152MHz |
| Adjustable outputs | 44.1kHz, 48kHz 11.2896MHz, 12.288MHz 22.5792MHz, 24.576MHz |
| Output connectors | BNC 75Ω |
| Oscillators | OCXO |
| GENERAL | |
|---|---|
| Supply voltage | 100-240VAC, 50/60Hz (manual selection) |
| Consumption | ≤ 20W |
| Dimensions | 340 x 260 x 66mm |
| Weight | 6kg |
| Package | 1x Denafrips Terra 1x Power cord |
