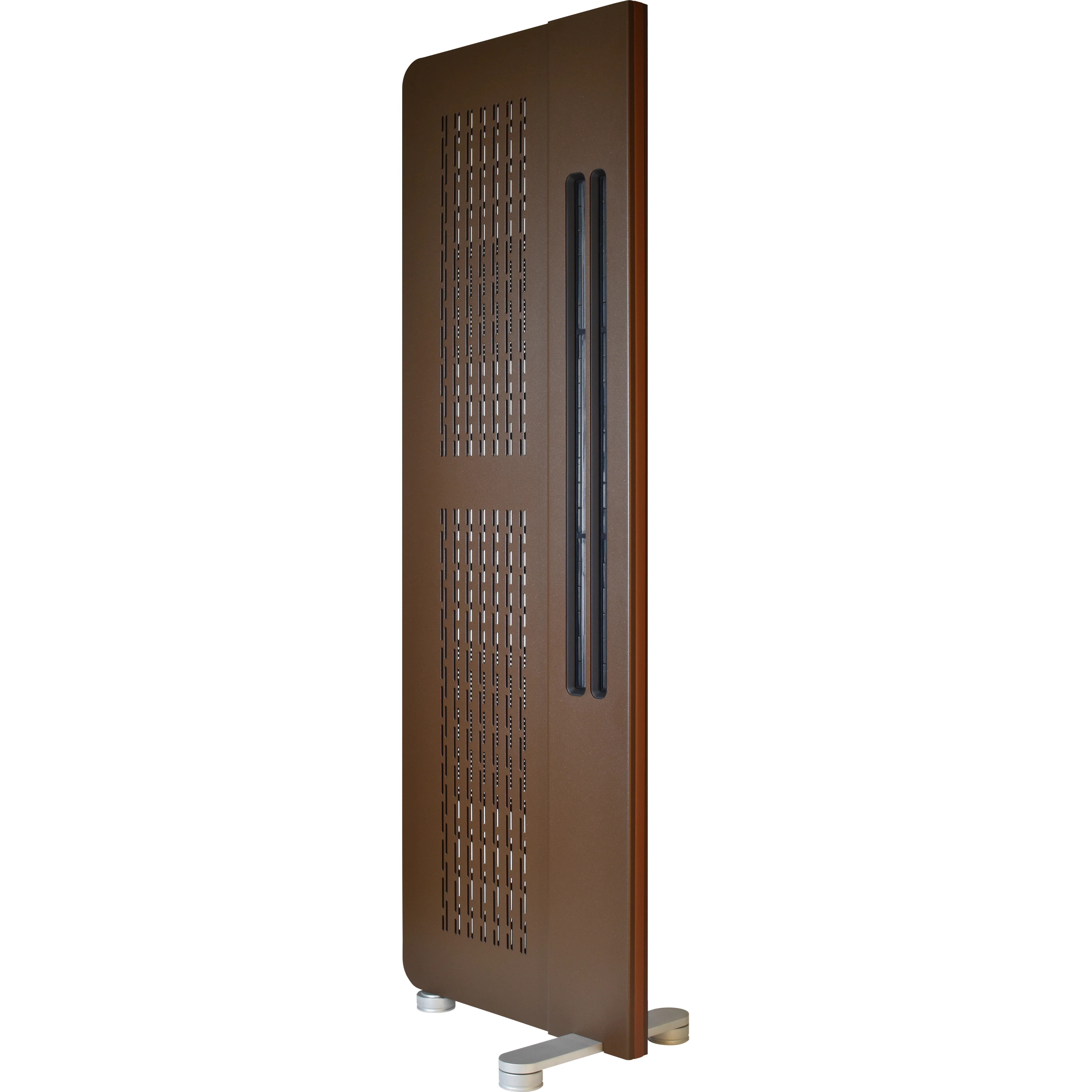

Diptyque DP170: Pure Planar Perfection

Experience the pinnacle of Diptyque Audio’s standard range. The DP170 is a sophisticated, three-way planar-magnetic loudspeaker that bridges the gap between high-end performance and refined, room-friendly design. Hand-built with meticulous attention to detail in Montauban, France, this speaker represents over twenty-five years of research and acoustic innovation.

Architectural Elegance & Innovative Design

The DP170 is designed to disappear into your listening room, both visually and sonically. Borrowing the advanced sandwich mechanical structure from the flagship Reference model, the DP170 provides exceptional rigidity and resonance control. By damping vibrations within the frame, Diptyque ensures that the energy you hear comes from the planar diaphragms rather than the cabinet around them.

Bespoke Aesthetics

Your audio system should reflect your personal style. While the DP170 comes standard in sandblasted Black 2100 or White 9010, it offers unparalleled customisation. Choose from an exquisite selection of premium leather wraps (White, Caramel, Chocolate, or Black) or select from 160 custom RAL colours to perfectly integrate these statement pieces into your interior decor.

Technical Specifications

Specification	Detail
Type	Three-way planar-magnetic floorstanding loudspeaker
Bass / Midrange	2x PPBM (Push-Pull Bipolar Magnet) cells
Radiating Area	3,600 cm²
Midrange / Treble	90 cm isodynamic ribbon (neodymium magnets)
Frequency Response	28 Hz – 40 kHz
Sensitivity	88 dB / 1 W / 1 m
Impedance	6 ohms
Power Handling	200 W (60 W minimum recommended)
Dimensions	1,700 × 530 × 350 mm
Weight	55 kg per speaker
Origin	Hand-built in Montauban, France

Why the DP170 Stands Apart

• True Three-Way Planar Performance: Unlike most planar speakers that split the range into two, the DP170 features a genuine three-way design. Two large-scale PPBM bass/midrange cells work in harmony with a dedicated 90 cm isodynamic ribbon to deliver visceral low-end authority and delicate, airy high-frequency detail.
• Push-Pull Bipolar Magnet (PPBM) Technology: By holding the diaphragm between matched magnetic fields on both sides, Diptyque achieves perfect control and low-frequency authority.
• Artisanal Craftsmanship: Every Diptyque speaker is crafted by hand in their French workshop. The team manages the manufacturing process like luthiers, ensuring that every unit meets the  exacting standards of acoustic precision required for a high-fidelity experience.
