$58.10The Story
Next generation MM cartridge

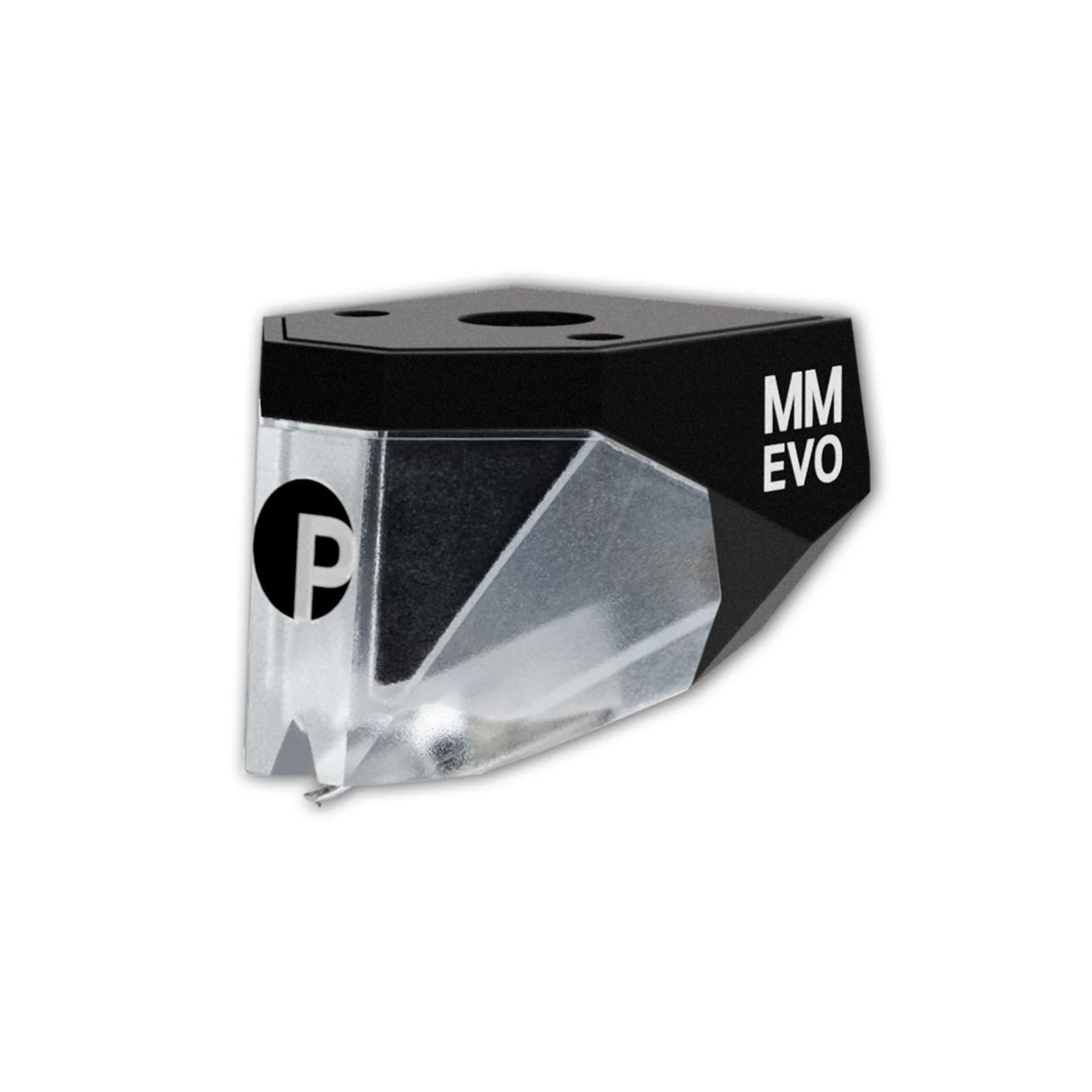

The new Pick it MM EVO
The new superior high dynamic 7mV output Pick it MM EVO cartridge is manufactured by the phono cartridge experts at Ortofon and carefully voiced by the design team at Pro-Ject Audio Systems.
It is equipped with a special elliptical stylus tip. It provides detailed sound reproduction and expansive imaging. It is a no-nonsense performer with fascinating musical resources. Attached to a strong cantilever, used in DJ cartridges, this cartridge will not just sound great, it is also very strong.
The cartridge is made from a unique combination of technologies. One of which is Ortofon‘s well known split pole pins. This enables it to have a flat frequency response, which is comparable to MC cartridges.
Features
- Moving Magnet principle
- Split pole pins enables frequency responses that compares very well to MC cartridges
- Strong cantilever based in high-end DJ cantilevers
- Suitable for low to medium tonearm masses
- Very detailed with low distortion
- Exceptionally lively & robust
- Convinces with high a dynamic range
- Simple and fast mounting
- 1/2 inch mounting standard
- Threaded holes for simple mouting without nuts
- Stylus available separately
- Made in Europe
Technical Specifications
| Cartridge principle: | MM (Moving-Magnet) |
| Output voltage | 7 mV |
| Channel separation at 1 kHz: | 22dB |
| Trackability (315 Hz, lateral) | 70 µm |
| Frequency response: | 20 - 20 000 Hz (+3 /-1 dB) |
| Stylus type | elliptical |
| Stylus tip radius: | r/R 8/18 μm |
| Tracking force, range: | 1,6 - 2 g (mN) |
| Recommended tracking force | 1,8 g (mN) |
| Height stylus tip to top mounting surface: | 18 mm |
| Tracking angle: | 20° |
| Recommended load resistance | 47 kΩ |
| Recommended load capacitance | 150 - 300 pF |
| Weight | 7.2 g |
