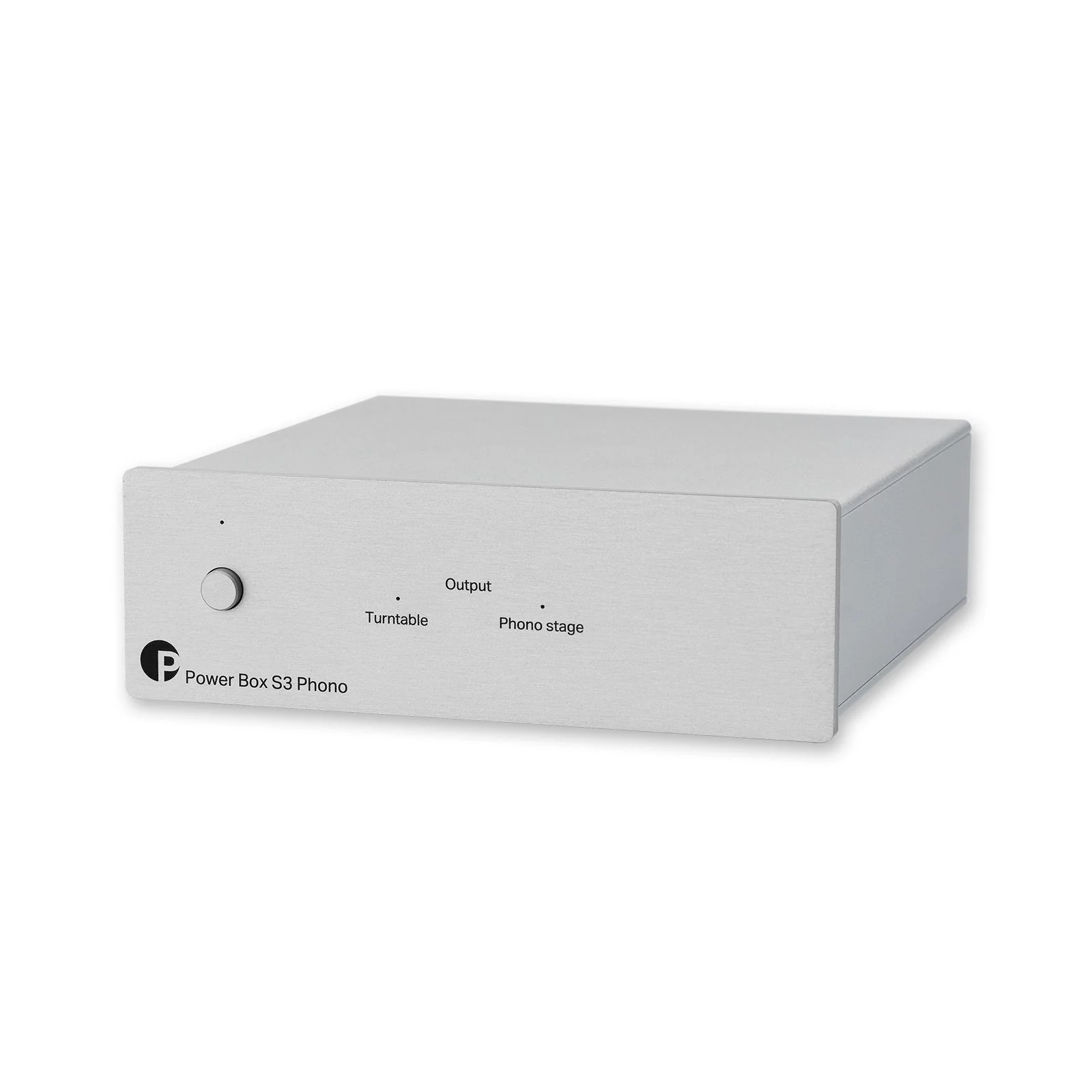

Pro-Ject Power Box S3 Phono Power Supply

Power Box S3 Phono is a very efficient and flexible power filter for your turntable and phono preamp. By placing the power supply outside of the main component, potential noise and audio signal contamination is avoided. Clean energy contributes significantly to the sound quality.

The Power Box S3 Phono's two outputs are specifically engineered to power Pro-Ject turntables and phono preamps. The sophisticated DC filtration can have a dramatic impact on the sound quality. In addition to the sound improvements, Power Box S3 Phono also offers its users a cleaner cable soluti- on avoiding PSU and cable mess.

The new Power Box Phono S3 is carefully designed and handmade in Europe. We aim to develop a technically flawless device in a housing that is only as big as necessary to save raw materials. Due to the timeless design & rigid aluminium casework, the Power Box Phono S3 is built for eternity.

With high-quality materials and components and well-thought-out design, we want to pioneer the industry.

Recommended prodcts for use with the Power Box S3 Phono

Phono Boxes

A/D Phono Box S
AD Box S2 Phono
Optical Box E Phono
Phono Box
Phono Box DS / DS+
Phono Box DS2
Phono Box DS3 B
Phono Box DS2 USB
Phono Box E
Phono Box E BT / BT5
Phono Box MM
Phono Box S
Phono Box S2
Phono Box S3 B
Phono Box S2 Ultra
Phono Box Ultra 500
Phono Box USB
Phono Box USB V
Tube Box S2
Tube Box DS2

DC Turntables

Automat Line E
Line Elemental Line
Primary Line
T Line
Essential Line
Debut Line
The Classic Line
RPM Line*
X Line*
S-Shape Special Editions
Artist Collection

ATTENTION: NOT SUITABLE for the following turntables: X8, Xtension 9, Xtension 10, Xtension 12, RPM 5, RPM 9, RPM 10. For these turntables we recommend the Power Box RS2 Phono or Power Box RS Uni TT. This list is correct as of 31st January 2023.

In the box:

• Power Box S3 Phono
• Manual
• 42cm power cable for turntable and phono preamp
• Power supply

Features

• NEW all in one power supply for your phono setup
• NEW compatible with all 18V Phono Boxes
• NEW compatible with all 15V DC turntables*
• Ultra stable & clean power
• Low noise power output
• Linear voltage regulation
• Low ESR capacitors
• Rigid aluminium casing protects against interference
• Available in black or silver
• Made in Europe

Technical Specifications

Input power supply:	18V / 1000mA
Output voltage/ripple:	1 x 15V ±0,5%
Output voltage/ripple:	1 x 18V ± 0,5%
Output current:	both outputs combined max. 1000 mA
Dimension (W x D x H):	103 x 37 x 106 mm
Weight:	370g without power supply
